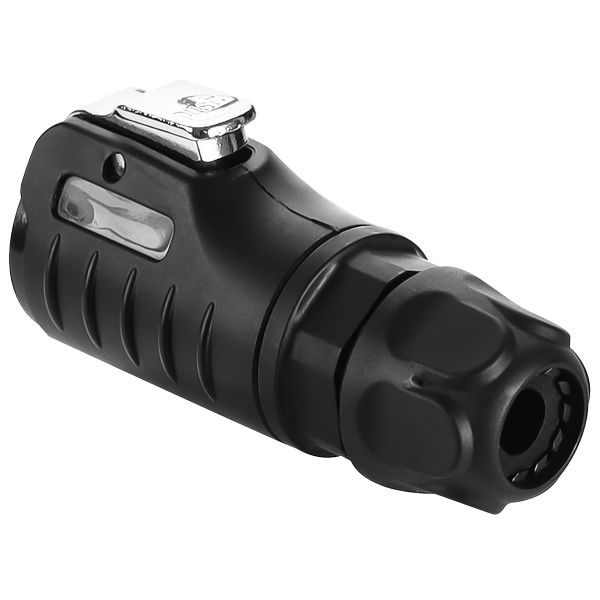

LP系列工業級防水連接器

產品介紹：LP系列工業級防水連接器采用模塊化設計，涵蓋電源（3芯）、RJ45、USB等接口類型，包含塑膠輕量化款與金屬高強款兩種外殼材質。產品融合人體工學原理，以簡約外觀實現復雜環境下的穩定電氣連接，滿足戶外設備、工業自動化等領域的高標準需求。

所屬分類：防水連接器返回上一級

價格：

促銷：

[
                                        {"產品型號": "LP12金屬款","規格": "2芯","產品規格": "插頭公"},{"產品型號": "LP12金屬款","規格": "2芯","產品規格": "插頭母"},{"產品型號": "LP12金屬款","規格": "2芯","產品規格": "連接器公"},{"產品型號": "LP12金屬款","規格": "2芯","產品規格": "連接器母"},{"產品型號": "LP12金屬款","規格": "2芯","產品規格": "螺母座公"},{"產品型號": "LP12金屬款","規格": "2芯","產品規格": "螺母座母"},{"產品型號": "LP12金屬款","規格": "2芯","產品規格": "法蘭座公"},{"產品型號": "LP12金屬款","規格": "2芯","產品規格": "法蘭座母"},{"產品型號": "LP16金屬款","規格": "2芯","產品規格": "插頭公"},{"產品型號": "LP16金屬款","規格": "2芯","產品規格": "插頭母"},{"產品型號": "LP16金屬款","規格": "2芯","產品規格": "連接器公"},{"產品型號": "LP16金屬款","規格": "2芯","產品規格": "連接器母"},{"產品型號": "LP16金屬款","規格": "2芯","產品規格": "螺母座公"},{"產品型號": "LP16金屬款","規格": "2芯","產品規格": "螺母座母"},{"產品型號": "LP16金屬款","規格": "2芯","產品規格": "法蘭座公"},{"產品型號": "LP16金屬款","規格": "2芯","產品規格": "法蘭座母"},{"產品型號": "LP16金屬款","規格": "3芯","產品規格": "插頭公"},{"產品型號": "LP16金屬款","規格": "3芯","產品規格": "插頭母"},{"產品型號": "LP16金屬款","規格": "3芯","產品規格": "連接器公"},{"產品型號": "LP16金屬款","規格": "3芯","產品規格": "連接器母"},{"產品型號": "LP16金屬款","規格": "3芯","產品規格": "螺母座公"},{"產品型號": "LP16金屬款","規格": "3芯","產品規格": "螺母座母"},{"產品型號": "LP16金屬款","規格": "3芯","產品規格": "法蘭座公"},{"產品型號": "LP16金屬款","規格": "3芯","產品規格": "法蘭座母"},{"產品型號": "LP16金屬款","規格": "4芯","產品規格": "插頭公"},{"產品型號": "LP16金屬款","規格": "4芯","產品規格": "插頭母"},{"產品型號": "LP16金屬款","規格": "4芯","產品規格": "連接器公"},{"產品型號": "LP16金屬款","規格": "4芯","產品規格": "連接器母"},{"產品型號": "LP16金屬款","規格": "4芯","產品規格": "螺母座公"},{"產品型號": "LP16金屬款","規格": "4芯","產品規格": "螺母座母"},{"產品型號": "LP16金屬款","規格": "4芯","產品規格": "法蘭座公"},{"產品型號": "LP16金屬款","規格": "4芯","產品規格": "法蘭座母"},{"產品型號": "LP16金屬款","規格": "5芯","產品規格": "插頭公"},{"產品型號": "LP16金屬款","規格": "5芯","產品規格": "插頭母"},{"產品型號": "LP16金屬款","規格": "5芯","產品規格": "連接器公"},{"產品型號": "LP16金屬款","規格": "5芯","產品規格": "連接器母"},{"產品型號": "LP16金屬款","規格": "5芯","產品規格": "螺母座公"},{"產品型號": "LP16金屬款","規格": "5芯","產品規格": "螺母座母"},{"產品型號": "LP16金屬款","規格": "5芯","產品規格": "法蘭座公"},{"產品型號": "LP16金屬款","規格": "5芯","產品規格": "法蘭座母"},{"產品型號": "LP20金屬款","規格": "2芯","產品規格": "插頭公"},{"產品型號": "LP20金屬款","規格": "2芯","產品規格": "插頭母"},{"產品型號": "LP20金屬款","規格": "2芯","產品規格": "連接器公"},{"產品型號": "LP20金屬款","規格": "2芯","產品規格": "連接器母"},{"產品型號": "LP20金屬款","規格": "2芯","產品規格": "螺母座公"},{"產品型號": "LP20金屬款","規格": "2芯","產品規格": "螺母座母"},{"產品型號": "LP20金屬款","規格": "2芯","產品規格": "法蘭座公"},{"產品型號": "LP20金屬款","規格": "2芯","產品規格": "法蘭座母"},{"產品型號": "LP20金屬款","規格": "3芯","產品規格": "插頭公"},{"產品型號": "LP20金屬款","規格": "3芯","產品規格": "插頭母"},{"產品型號": "LP20金屬款","規格": "3芯","產品規格": "連接器公"},{"產品型號": "LP20金屬款","規格": "3芯","產品規格": "連接器母"},{"產品型號": "LP20金屬款","規格": "3芯","產品規格": "螺母座公"},{"產品型號": "LP20金屬款","規格": "3芯","產品規格": "螺母座母"},{"產品型號": "LP20金屬款","規格": "3芯","產品規格": "法蘭座公"},{"產品型號": "LP20金屬款","規格": "3芯","產品規格": "法蘭座母"},{"產品型號": "LP20金屬款","規格": "4芯","產品規格": "插頭公"},{"產品型號": "LP20金屬款","規格": "4芯","產品規格": "插頭母"},{"產品型號": "LP20金屬款","規格": "4芯","產品規格": "連接器公"},{"產品型號": "LP20金屬款","規格": "4芯","產品規格": "連接器母"},{"產品型號": "LP20金屬款","規格": "4芯","產品規格": "螺母座公"},{"產品型號": "LP20金屬款","規格": "4芯","產品規格": "螺母座母"},{"產品型號": "LP20金屬款","規格": "4芯","產品規格": "法蘭座公"},{"產品型號": "LP20金屬款","規格": "4芯","產品規格": "法蘭座母"},{"產品型號": "LP20金屬款","規格": "5芯","產品規格": "插頭公"},{"產品型號": "LP20金屬款","規格": "5芯","產品規格": "插頭母"},{"產品型號": "LP20金屬款","規格": "5芯","產品規格": "連接器公"},{"產品型號": "LP20金屬款","規格": "5芯","產品規格": "連接器母"},{"產品型號": "LP20金屬款","規格": "5芯","產品規格": "螺母座公"},{"產品型號": "LP20金屬款","規格": "5芯","產品規格": "螺母座母"},{"產品型號": "LP20金屬款","規格": "5芯","產品規格": "法蘭座公"},{"產品型號": "LP20金屬款","規格": "5芯","產品規格": "法蘭座母"},{"產品型號": "LP24金屬款","規格": "2芯","產品規格": "插頭公"},{"產品型號": "LP24金屬款","規格": "2芯","產品規格": "插頭母"},{"產品型號": "LP24金屬款","規格": "2芯","產品規格": "連接器公"},{"產品型號": "LP24金屬款","規格": "2芯","產品規格": "連接器母"},{"產品型號": "LP24金屬款","規格": "2芯","產品規格": "螺母座公"},{"產品型號": "LP24金屬款","規格": "2芯","產品規格": "螺母座母"},{"產品型號": "LP24金屬款","規格": "2芯","產品規格": "法蘭座公"},{"產品型號": "LP24金屬款","規格": "2芯","產品規格": "法蘭座母"},{"產品型號": "LP24金屬款","規格": "3芯","產品規格": "插頭公"},{"產品型號": "LP24金屬款","規格": "3芯","產品規格": "插頭母"},{"產品型號": "LP24金屬款","規格": "3芯","產品規格": "連接器公"},{"產品型號": "LP24金屬款","規格": "3芯","產品規格": "連接器母"},{"產品型號": "LP24金屬款","規格": "3芯","產品規格": "螺母座公"},{"產品型號": "LP24金屬款","規格": "3芯","產品規格": "螺母座母"},{"產品型號": "LP24金屬款","規格": "3芯","產品規格": "法蘭座公"},{"產品型號": "LP24金屬款","規格": "3芯","產品規格": "法蘭座母"},{"產品型號": "LP24金屬款","規格": "4芯","產品規格": "插頭公"},{"產品型號": "LP24金屬款","規格": "4芯","產品規格": "插頭母"},{"產品型號": "LP24金屬款","規格": "4芯","產品規格": "連接器公"},{"產品型號": "LP24金屬款","規格": "4芯","產品規格": "連接器母"},{"產品型號": "LP24金屬款","規格": "4芯","產品規格": "螺母座公"},{"產品型號": "LP24金屬款","規格": "4芯","產品規格": "螺母座母"},{"產品型號": "LP24金屬款","規格": "4芯","產品規格": "法蘭座公"},{"產品型號": "LP24金屬款","規格": "4芯","產品規格": "法蘭座母"},{"產品型號": "LP24金屬款","規格": "5芯","產品規格": "插頭公"},{"產品型號": "LP24金屬款","規格": "5芯","產品規格": "插頭母"},{"產品型號": "LP24金屬款","規格": "5芯","產品規格": "連接器公"},{"產品型號": "LP24金屬款","規格": "5芯","產品規格": "連接器母"},{"產品型號": "LP24金屬款","規格": "5芯","產品規格": "螺母座公"},{"產品型號": "LP24金屬款","規格": "5芯","產品規格": "螺母座母"},{"產品型號": "LP24金屬款","規格": "5芯","產品規格": "法蘭座公"},{"產品型號": "LP24金屬款","規格": "5芯","產品規格": "法蘭座母"},{"產品型號": "LP24金屬款","規格": "6芯","產品規格": "插頭公"},{"產品型號": "LP24金屬款","規格": "6芯","產品規格": "插頭母"},{"產品型號": "LP24金屬款","規格": "6芯","產品規格": "連接器公"},{"產品型號": "LP24金屬款","規格": "6芯","產品規格": "連接器母"},{"產品型號": "LP24金屬款","規格": "6芯","產品規格": "螺母座公"},{"產品型號": "LP24金屬款","規格": "6芯","產品規格": "螺母座母"},{"產品型號": "LP24金屬款","規格": "6芯","產品規格": "法蘭座公"},{"產品型號": "LP24金屬款","規格": "6芯","產品規格": "法蘭座母"}
                                        ]

產品介紹

咨詢服務熱線：13957717877

產品概述

資料下載

相關產品

相關資訊



為何選擇LP系列工業級防水連接器？

LP系列采用按扣式連接技術，支持單手快速插拔操作，滿足高效作業需求；

通過多重防水結構設計，提供穩定防護性能；產品兼具輕量化與高強度特性，可適應工

業場景中抗干擾、耐腐蝕、抗沖擊等嚴苛要求。

LP系列工業級防水連接器產品優勢：

1、高效操作：按扣式鎖定設計，實現單手快速連接

2、多重防護：IP68級防水防塵，抵御水液侵入

3、環境耐受：寬溫域運行（-40℃~+85℃），耐鹽霧48小時以上

4、持久可靠：插拔壽命≥500次，溫升控制≤30K

5、安全適配：通過UL94V0阻燃認證，適用防爆場景

LP系列工業級防水連接器產品特點：

1、結構設計

- 按扣式鎖定機構，操作便捷性提升

- 塑膠外殼輕量耐蝕（耐溫25℃~+80℃）

- 金屬外殼抗沖擊強度提升，適用于高危環境

2、防護性能

- IP68級密封防護，有效隔絕液體滲透

- 抗UV工程材料，延緩戶外環境老化

- 48小時鹽霧測試驗證，耐受腐蝕性介質

3、電氣性能

- 銅合金鍍金端子，導電效率提升

- 低電阻設計減少能量損耗

- 支持USB2.0/3.0及以太網高速傳輸

LP系列工業級防水連接器產品應用：

1. 智能停機坪與無人機設備

需求：戶外復雜環境下的電源/數據傳輸，需防水抗振、耐溫差及抗老化

方案：LP12/LP16/LP20/LP24系列提供電源與RJ45連接，構建傳感器至控制中心的

穩定鏈路

價值：寬溫域適應性（-40℃~85℃）結合抗振設計，保障轉場作業可靠性

2. 戶外LED工程與城市亮化

需求：長期暴露于雨水、紫外線場景的供電及信號穩定傳輸

方案：電源/USB/RJ45接口防護，支撐顯示屏與景觀燈光系統

價值：抗UV材料與防腐設計，延長戶外設備使用壽命

3. 舞臺燈光與移動演出系統

需求：頻繁轉場中的快速插拔、防水及電力穩定供應

方案：高導鍍金端子電源連接器，支持演出設備即時部署

價值：插拔效率與溫升控制，演出過程零失誤

4. 工業自動化與安防監控

需求：端溫度及腐蝕環境中的持續穩定連接（如通信機柜、電子警察系統）

方案：LP20系列供電模塊適配高溫環境（柜內70℃）

價值：防腐耐溫特性結合單手操作，提升工業設備運維效率

5. 高危防爆環境

需求：石油/礦井場景的阻燃防爆、防水及高速數據傳輸

方案：LP20USB系列通過UL94V0認證，提供防爆設備連接

價值：鍍金觸點降低信號延遲，寬溫域支持易燃環境安全作業

6. 新能源與船舶電力系統

需求：高濕、鹽霧及寬溫環境下的電力管理

方案：金屬款產品應用于船舶岸電與新能源設備

價值：船舶級防水標準與長效防腐設計，適應海上端氣候


LP系列工業級防水連接器技術參數：

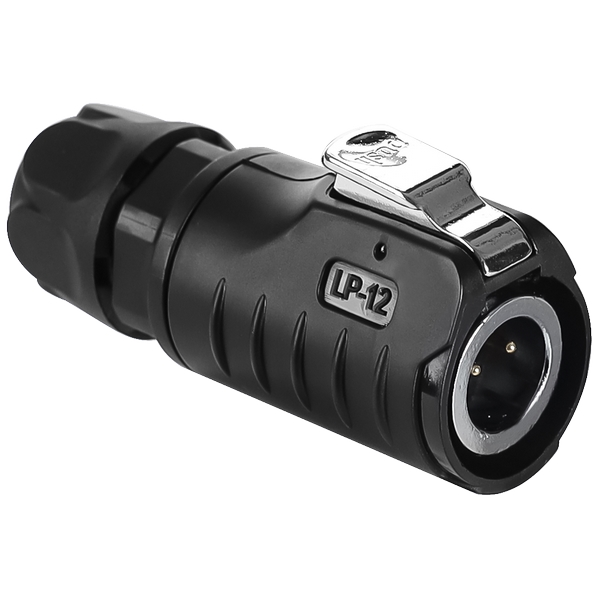

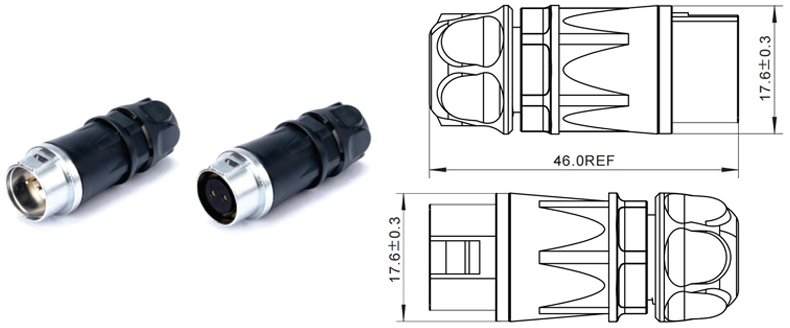

LP 12 電源/信號	產品系列	LP-12
	芯數	2芯
	額定電流(A)	5
	額定電壓(V)	125
	適用線徑 (mm)	中3.5~φ4.5
	接線規格	0.34~0.5mm2/22~20AWG
	防護等級	連接狀態IP68
	接線類型	螺絲壓接
LP 16 電源/信號	產品系列	LP-16
	芯數	2芯	3芯	4芯	5芯
	額定電流(A)	10	10	5	5
	額定電壓(V)	400	400	400	250
	適用線徑 (mm)	φ3.0~中5.0 φ5.0~φ7.0 Φ7.0~φ9.0 (可選配)
	接線規格	1.0~1.5mm2/ 18~16AWG	1.0~1.5mm2/ 18~16AWG	1.0~1.5mm2/ 18~16AWG	0.34~0.5mm2/ 22~20AWG
	防護等級	連接狀態IP68
	接線類型	螺絲壓接	螺絲壓接	螺絲壓接	螺絲壓接
LP 20 電源/信號	產品系列	LP-20
	芯數	2芯	3芯	4芯	5芯
	額定電流(A)	25	25	25	10
	額定電壓(V)	500	500	500	500
	適用線徑 (mm)	中5.0~中6.5 中6.5~中8.5 中8.5~中10.0 中10.0~中12.0 (可選配)
	接線規格	2.5~4.0mm2/ 14~12AWG	2.5~4.0mm2/ 14~12AWG	2.5~4.0mm2/ 14~12AWG	1.0~1.5mm2/ 18~16AWG
	防護等級	連接狀態IP68
	接線類型	螺絲壓接	螺絲壓接	螺絲壓接	螺絲壓接
LP 24 電源/信號	產品系列	LP-24
	芯數	2/3/4芯		5/6芯
	額定電流(A)	25	30	10	10
	額定電壓(V)	500	500	500	300
	適用線徑 (mm)	中5.0~φ7.0 Φ7.0~中10.5 Φ10.5~φ14.0 (可選配)
	接線規格	2.5~4.0mm2/ 14~12AWG	6.0~8.0mm2/ 10~8AWG	2.5~4.0mm2/ 14~12AWG	6.0~8.0mm2/ 10~8AWG
	防護等級	連接狀態IP68
	接線類型	螺絲壓接	螺絲壓接	螺絲壓接	螺絲壓接
